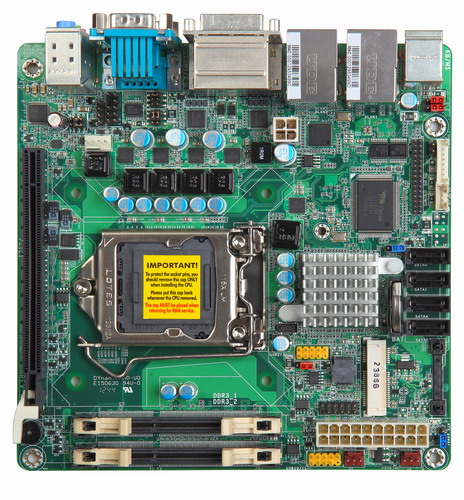

1. LGA1155 for 2nd/3rd Gen Intel® i3/i5/i7/Pentium Processors
2. Intel® H61 PCH (Platform Controller Hub)
3. 2 x 204pin DDR3 1333/1600MHz SO-DIMM Socket up to 16GB
4. 2 x Intel® PCI-E Gigabit controller
5. 4 x SATAII, 2x COM Ports, 8 x USB2.0
6. 1 x PCI-E 16x Slot
7. 1 x Half Mini PCIe slot

>> System

Processor                            LGA1155 for Intel^® Sandy Bridge and Ivy Bridge i3/i5/i7/Pentium processor

Chipset                               Intel^® H61 PCH

DRAM                                  2 x 204pin DDR3 1333/1600MHz SO-DIMM up to 16GB

BIOS                                   8MB AMI BIOS ROM

Power Supply                       Standard ATX 24pin power connector , Support AT/ATX Mode Power on

Watchdog                            Watchdog timer function

Dimension                           170mm x 170mm

>> I/O Ports

HDD
