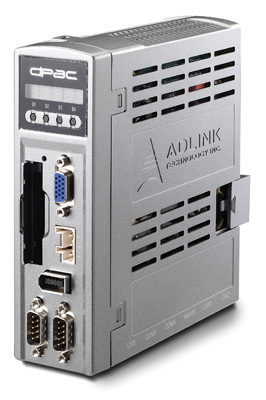

Distributed Programmable Automation Controller with Four COM Ports (Intel® Atom™ N270

 1.6 GHz CPU)

§         CPU: Intel® Atom™ N270, FSB 533, 1.6 GHz

§         On-board Memory: 1 GB DDR2 SDRAM

§         Compact & Fanless design

§         Equipped with 4 serial communication ports; 3 of them are selectable for RS-232/422/485

 (auto flow control)

§         Designed to integrate ADLINK NuDAM to form a remote data acquisition controller

§         Windows® XP Embedded (default: English Version)

§         Smart UI with Programmable Buttons and Digital Display

§         High Tolerant Vibration and Shock Capability

The ADLINK DPAC-1000 series of embedded PC's combines the embedded PC technology and distributed I/O modules to form a compact, vertically mountable, highly-extendable, and fast time-tomarket Programmable Automation Controller (PAC) solution. The DPAC-1000 enables direct connection of serial communication devices. In addition, DPAC systems have passed safety regulations such as UL and TUV certification.
