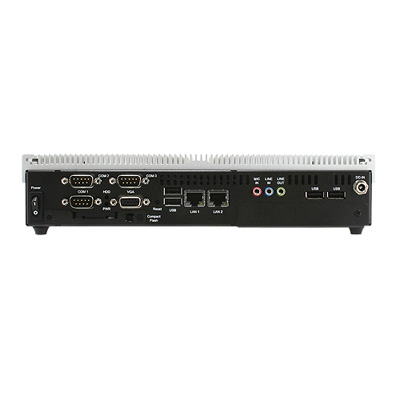

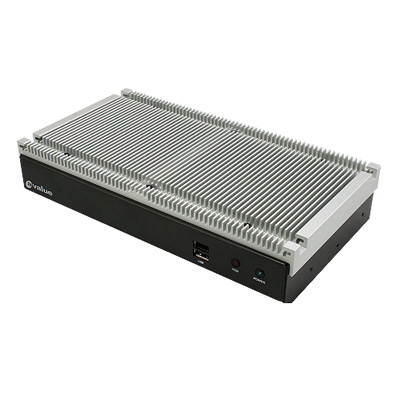

Fanless Intel® Atom™ D525 Dual-Core Rugged Embedded System with Intel® ICH8-M Chipset
• Onboard Intel® Atom™ D525 Dual-Core 1.8GHz CPU (Optional: D510)
• Intel® ICH8-M Chipset
• One 200-pin SODIMM Up to 2GB DDR2 667 SDRAM
• 5.1-CH Audio, Dual Gigabit Ethernet
• 1 VGA, 1 CF, 1 SATA, 3 COM, 5 USB, 1 Mini PCIe
• Service Windows, Easy to Install HDD and Memory
• Fanless Operation
• -10 ~ 50°C Wide Temperature Operation
• Rugged Design for Vibration/ Shock Protection
• Optional Function: 1. 9 ~ 32V Wide Range DC Power Input + Phoenix Type Power Conn, 2. Add 3 COMs in Front, 3. USB WiFi 802.11b/g Module
ERS-PNV-525
Fanless Intel® Atom™ D525 Dual-Core 1.8GHz Rugged Embedded System with Intel® ICH8-M Chipset and Heatsink, VGA, 3 COM, 5 USB, 2 Gigabit Ethernet, CF, Audio, 12V DC Input
ACC-ERS-WM
ERS Series Wall Mount Kit (RoHS)
ACC-CF-xx
CompactFlash Card Series (xx = Capacity, Capacity Option: 2, 4, 8, 16, 32GB)
